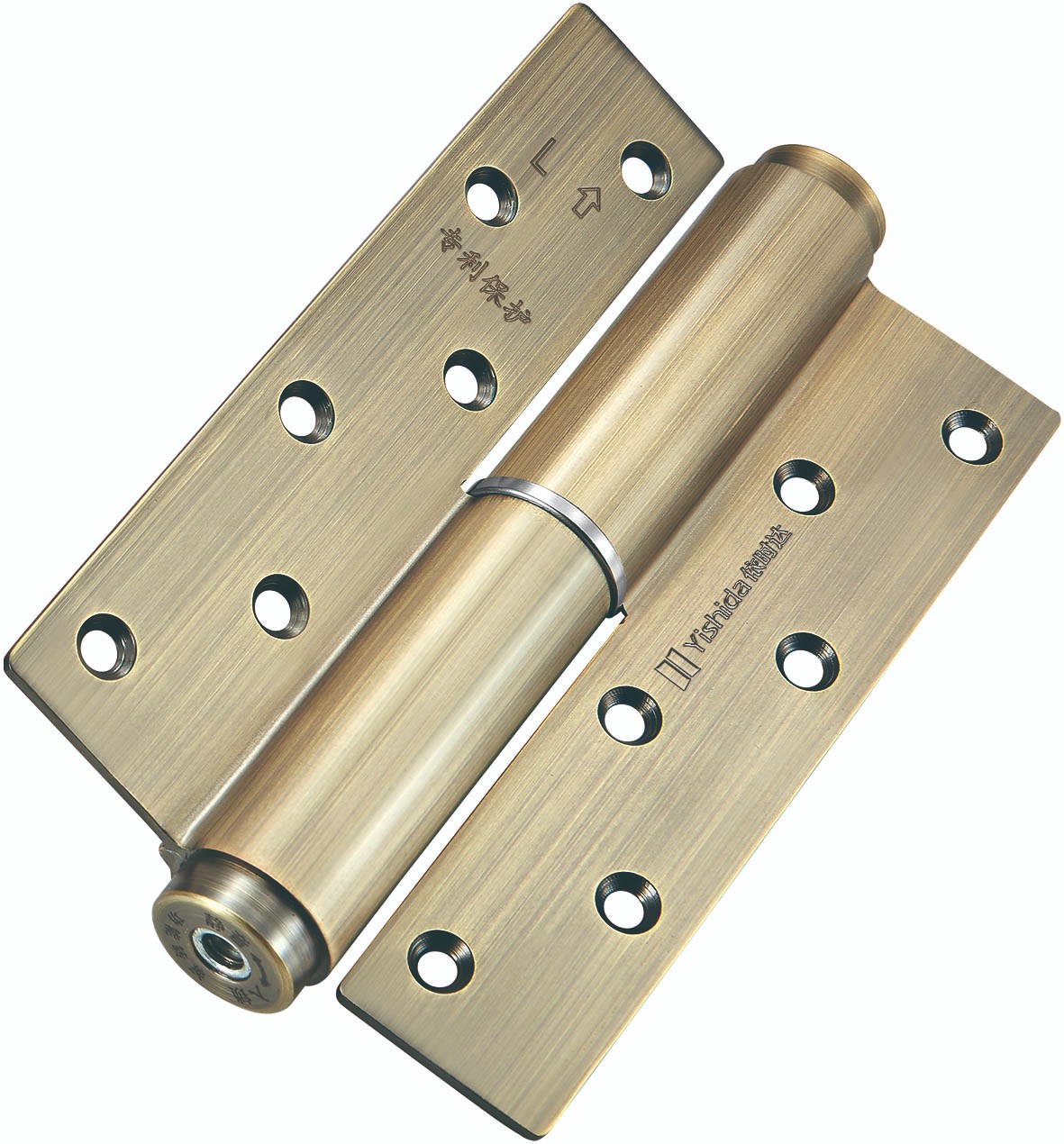

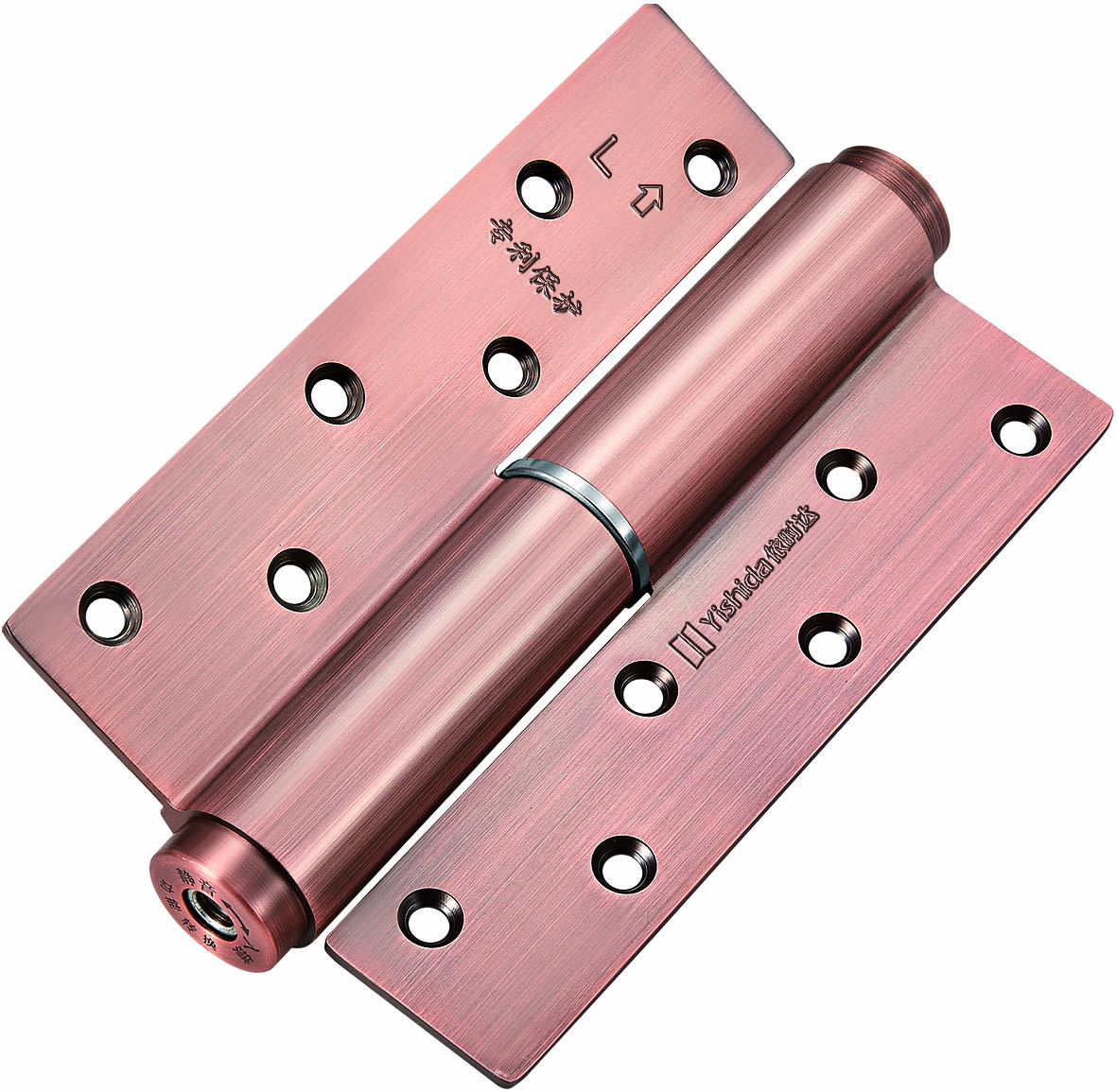

H-Type Six-Inch Hydraulic Hinge
- yishida
- zhaoqing
- 2024
- 100000+
1.Feature description:
1.1 No need for slotting, installation regardless of left and right. More worry-free and more convenient.
1.2 Full rolling bearing connection, quiet, quiet and more durable 30°Angle interval function
1.3 The shutdown function is controllable, making installation and use simpler and more practical.
1.4 Efficient hydraulic system ensures no oil leakage, softness and smoothness during long-term use
H-Type Six-Inch Hydraulic Hinge
-
Maximum door opening angle 180°
-
If it is greater than 150°, it will automatically reset to 150°.Door suction position (to prevent hitting the wall)
-
150°-125° automatic closing angle
-
125°-80° is the desired stopping angle
-
It will automatically turn off if it is less than 80°
-
80°-30° is the faster closing angle
-
30°-20° is the slow closing angle
-
20°-0° locking. Silent and adjustable
See the figure below for the hinge installation location.
| door weight | size | quantity | Remark |
| ≤30kg | ≤2000mm×700mm | 1 hydraulic + 1 load-bearing hinge | 2 hydraulic hinges have the best effect |
| ≤55kg | ≤2000mm×900mm | 2 hydraulic hinges |
Height exceeds 2100mm with 1 load-bearing hinge in the middle (3 hydraulic hinges have the best effect) |
| ≤80kg | ≤2400mm×1100mm | 3 hydraulic hinges |
Applicable to various lintels, steel doors, and aluminum alloy doors. The number of hinges to be used is determined according to the door weight and size.
